The API channel is for teams that already have a customer conversation channel: their own app, a self-run Zalo OA, a contact centre, a CRM. Your system forwards customer messages to the platform over a webhook; the agent’s answers come back to your webhook as callbacks.

Both directions share one secret and one signing scheme, so you write the signature function once and reuse it for sending and receiving.

Choosing an integration channel

Criterion	Live Chat	API channel
Chat interface	Supplied by FPT.AI	Built by you
Integration effort	Paste one script tag	Write a receiving webhook and a sending client
Answers	Streamed token by token in real time (SSE)	One callback per complete answer
Authentication	A `visitorToken` issued automatically per customer	HMAC-SHA256 signature on every packet
Customer identity	Generated by the platform (anonymous)	Supplied by you through `user.id`
Inbound attachments	Yes	Yes, if an administrator has enabled them
Buttons, carousels	Yes	Yes

The two are not mutually exclusive. One agent can serve the website widget and your system over the API channel at the same time. Each is a separate connection with its own key.

Environments and domains

Environment	API channel webhook	History API
Production	`https://console-agents.fpt.ai`	`https://console-agents.fpt.ai`
Staging	`https://console-agents-staging.fpt.ai`	`https://console-agents-staging.fpt.ai`

Everything sits under one application domain and is told apart by path: the API channel’s inbound message webhook is https://console-agents.fpt.ai/webhooks/api, while the history API is https://console-agents.fpt.ai/direct-bff/…. Always copy the exact webhook address from Console rather than deriving it.

Connecting the API channel and getting your keys

Open Console and sign in with your account.

Pick the agent to configure

This agent will answer the messages your system forwards.

Open the Channels tab

Channels is on the agent’s navigation bar.

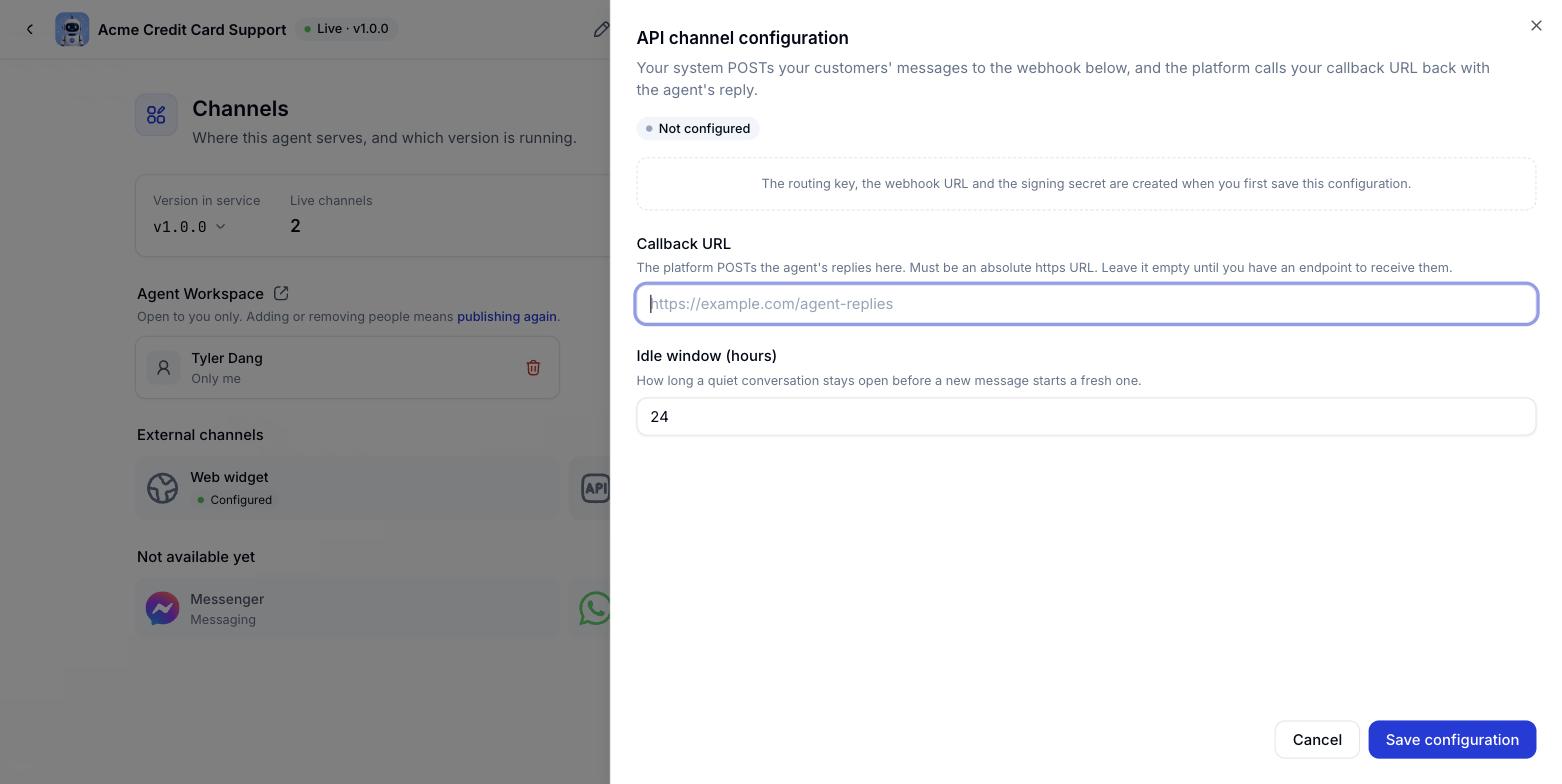

Click the API tile

The API channel configuration panel opens.

Fill in the channel configuration

Two fields - see the table below.

Click Save configuration to create the channel

The API tile on the Channels tab switches to Configured.

Click Generate new key

Copy the routing key and the signing key before you close the dialog.

Field	Description	Required
Callback URL	Where the platform sends the agent’s answers back to you. Must be `https`, at most 2048 characters, and publicly reachable on the internet. You can leave it empty if your endpoint is not ready; the channel still receives messages, but no answers are sent back	Optional
Idle window (hours)	If a conversation goes quiet for longer than this, the customer’s next message opens a new one. Between 1 and 720 hours, default 24	Optional

The signing key is shown exactly once, at the moment it is created. The system only stores a hash, so there is no way to see it again. Copy it into your secret store before closing the dialog.

What you get

Value	Example	What it is
Routing key	`api_7Kd2xQ9mPz4vR8nLcJt3Aw`	Identifies your connection. Send it in the body’s `integrationKey` field, not on the URL
Webhook URL	`https://console-agents.fpt.ai/webhooks/api`	Where your system sends customer messages. Shared by every organisation
Signing key	(shown once)	The secret used to sign and verify signatures in both directions
Callback URL	`https://your-domain.com/agent-replies`	Your webhook, entered in step 5

Testing the callback URL

The Test callback button beside the input sends a signed request to your address and expects the right answer back. See Verifying your webhook endpoint below for how to implement it. The button is limited to 10 tests per minute per organisation.

Rotating the secret

Click Generate new key

From this moment, both the old and the new key are accepted.

Roll the new key out to all your servers

Re-check both the sending and receiving paths.

Click Finish rotation

The old key is disabled. Only the new one works from then on.

Do not skip the last step. The old key keeps working until you finish the rotation, so forgetting it means you have not actually rotated anything.

Verifying event payloads

Every packet in both directions is signed with HMAC-SHA256 using the channel secret. The signature travels in the X-Hub-Signature-256 header with a sha256= prefix, alongside an X-Hub-Timestamp header carrying the send time. The signed string is the timestamp, a dot, and the raw body:

mac = HMAC-SHA256(secret, timestamp + "." + rawRequestBody)

Sign the exact bytes you send. Parsing the JSON into an object and re-serialising it, even if only the key order changes, produces a different signature.
The timestamp is inside the signature, so an attacker who captures a packet cannot alter it. Send the current Unix time in seconds.
A timestamp more than 5 minutes off the server clock in either direction is rejected. Keep your servers NTP-synced.
There are no exceptions. There is no signature-skipping mode, and no exemption for connections that have not generated a key.

Signing in Go

package main

import (
	"crypto/hmac"
	"crypto/sha256"
	"encoding/hex"
	"fmt"
	"strconv"
	"time"
)

func sign(secret string, body []byte, timestamp string) string {
	h := hmac.New(sha256.New, []byte(secret))
	h.Write([]byte(timestamp))
	h.Write([]byte("."))
	h.Write(body)
	return "sha256=" + hex.EncodeToString(h.Sum(nil))
}

func main() {
	// The raw body - exactly the bytes that will be sent.
	body := []byte(`{"integrationKey":"api_7Kd2xQ9mPz4vR8nLcJt3Aw",` +
		`"messageId":"msg-1001","user":{"id":"cust-42"},` +
		`"text":"Hello"}`)
	secretKey := "my_secret_key"
	timestamp := strconv.FormatInt(time.Now().Unix(), 10)
	fmt.Println("X-Hub-Timestamp:", timestamp)
	fmt.Println("X-Hub-Signature-256:", sign(secretKey, body, timestamp))
}

Signing in Node.js

const crypto = require('crypto');

function sign(secret, body, timestamp) {
  return 'sha256=' + crypto
    .createHmac('sha256', secret)
    .update(timestamp + '.' + body)
    .digest('hex');
}

// The raw body - exactly the string that will be sent.
const body = JSON.stringify({
  integrationKey: 'api_7Kd2xQ9mPz4vR8nLcJt3Aw',
  messageId: 'msg-1001',
  user: { id: 'cust-42' },
  text: 'Hello'
});

const secretKey = 'my_secret_key';
const timestamp = Math.floor(Date.now() / 1000).toString();
console.log('X-Hub-Timestamp:', timestamp);
console.log('X-Hub-Signature-256:', sign(secretKey, body, timestamp));

Verifying signatures the platform sends you

Reuse the same function, then compare with a constant-time comparison so nothing leaks through timing:

const express = require('express');
const crypto = require('crypto');
const app = express();

// Required: keep the RAW body so you can compute the signature.
app.use(express.raw({ type: 'application/json' }));

app.post('/agent-replies', (req, res) => {
  const ts  = req.get('X-Hub-Timestamp') || '';
  const got = req.get('X-Hub-Signature-256') || '';
  const raw = req.body;                       // Buffer, not JSON.parse-d

  // 1. Check the clock skew first (5 minutes max).
  const skew = Math.abs(Math.floor(Date.now() / 1000) - Number(ts));
  if (!Number.isFinite(skew) || skew > 300) return res.sendStatus(401);

  // 2. Compare signatures.
  const want = sign(process.env.CHANNEL_SECRET, raw, ts);
  const a = Buffer.from(got), b = Buffer.from(want);
  if (a.length !== b.length || !crypto.timingSafeEqual(a, b)) {
    return res.sendStatus(401);
  }

  const event = JSON.parse(raw.toString('utf8'));

  // 3. Return 200 IMMEDIATELY, then process asynchronously.
  res.sendStatus(200);
  handleAsync(event);
});

Most signature failures come from a web framework parsing the body into an object before you can read it. Configure it to keep the raw bytes (express.raw, bodyParser.raw, or read the input stream directly) and parse the JSON only after verification.

Receiving customer messages

Messages your customers send to your system are forwarded to the platform over the webhook. The event has two parts: the payload, and the signature that authenticates it.

HTTP Method	URI
POST	`/webhooks/api`

HTTP header	Value
`Content-Type`	`application/json`
`X-Hub-Timestamp`	Unix time in seconds
`X-Hub-Signature-256`	`sha256=…`

A text message

{
  "integrationKey": "api_7Kd2xQ9mPz4vR8nLcJt3Aw",
  "messageId": "msg-1001",
  "user": {
    "id": "cust-42",
    "name": "Nguyen Van A",
    "avatar": "https://example.com/avatar.png",
    "locale": "vi"
  },
  "text": "Where is my order?",
  "metadata": { "orderId": "SO-7781" }
}

A message from a button or quick reply

{
  "integrationKey": "api_7Kd2xQ9mPz4vR8nLcJt3Aw",
  "messageId": "msg-1002",
  "user": { "id": "cust-42" },
  "text": "Track order",
  "postback": "track:SO-7781"
}

A message with an attachment

{
  "integrationKey": "api_7Kd2xQ9mPz4vR8nLcJt3Aw",
  "messageId": "msg-1003",
  "user": { "id": "cust-42" },
  "text": "Here is a photo of the faulty product",
  "attachments": [
    {
      "url": "https://example.com/files/faulty-product.jpg",
      "name": "faulty-product.jpg",
      "mimeType": "image/jpeg"
    }
  ]
}

Parameters

Parameter	Example	Description	Required
`integrationKey`	`api_7Kd2xQ9…`	The channel routing key from Console. Up to 256 characters	Required
`messageId`	`msg-1001`	A message id you generate. It is the end-to-end deduplication key. Up to 256 characters	Required
`user`		The sender object	Required
`user.id`	`cust-42`	The customer’s id in your system. Up to 256 characters	Required
`user.name`	`Nguyen Van A`	Customer name. Up to 256 characters	Optional
`user.avatar`	`https://…/a.png`	Customer picture. Up to 2048 characters	Optional
`user.locale`	`vi`	The customer’s language. Up to 256 characters	Optional
`text`	`Where is my order?`	The message content. Up to 16,384 characters. Always required, even when `postback` is present	Required
`postback`	`track:SO-7781`	The hidden payload of the button or quick reply they tapped. Up to 1024 characters	Optional
`metadata`	`{"orderId":"SO-7781"}`	Your own additional data. Up to 32 keys and 8192 bytes once JSON-encoded	Optional
`attachments`		The attachment list. Up to 5 items	Optional
`attachments[].url`	`https://…/a.jpg`	The file URL; the platform downloads it. Up to 2048 characters	Required
`attachments[].name`	`photo.jpg`	File name. Up to 256 characters	Optional
`attachments[].mimeType`	`image/jpeg`	The file’s content type	Optional

text is always required, even for a message that only carries a postback. The customer’s turn is stored and shown to staff when they take over the conversation, so a wordless postback leaves an empty bubble in their inbox. Send the button label as text.

postback reaches the agent as separate context and is never treated as something the customer said. That is how the agent tells apart what a person typed from what your interface carried along. One field covers both buttons and quick replies.

A cURL example

curl --location 'https://console-agents.fpt.ai/webhooks/api' \
  --header 'Content-Type: application/json' \
  --header 'X-Hub-Timestamp: 1755763200' \
  --header 'X-Hub-Signature-256: sha256=c22b7f7c1957fb301d6181c5fbf4dc841d735af48ddc14e9a4dade1658fdc3e5' \
  --data '{
    "integrationKey": "api_7Kd2xQ9mPz4vR8nLcJt3Aw",
    "messageId": "msg-1001",
    "user": { "id": "cust-42", "name": "Nguyen Duc Minh" },
    "metadata": { "customer_id": "2449956338403583" },
    "text": "hello"
  }'

Response codes

Status	Meaning	What to do
200	Accepted	Nothing. The agent answers asynchronously by callback
400	Invalid body: bad JSON, a missing required field, or a field over its limit	Fix the request. Retrying will not help
401	Invalid signature or timestamp	Check the secret and the server clock. The empty response body is deliberate
405	Wrong method	Only POST is accepted
503	The platform could not accept it	Retry with backoff. This is not a rejected message

200 means accepted, not answered. The agent works asynchronously and the answer reaches your webhook afterwards.

Deduplication

messageId is the end-to-end deduplication key. A message with the same (integrationKey, messageId) pair resent within 5 minutes is recognised and skipped, so retrying after a timeout does not give your customer two answers.

Use your own stable message id. Do not generate a new one per retry - that disables deduplication entirely.

Inbound attachments

Each item in attachments needs a url the platform can fetch. The file contents are copied into your organisation’s storage and handed to the agent, so the URL you supply does not need to live long afterwards.

Attachment upload is off until an administrator enables it. When it is off, and for any file that is over the limit or fails to download, the file is skipped but text still reaches the agent. A message with attachments is therefore never an error, and you cannot tell from the response code whether the file was taken.

Additional data

Your metadata object reaches the agent nested under client_metadata. It is never merged into the top level, because the keys there - the recipient identifiers above all - decide who the answer goes to. Unknown fields at the top level of the body are ignored, so you can add your own without being rejected.

Agent message callbacks

The agent’s answers are sent to your webhook as a signed POST. Like the inbound direction, the event has two parts: the payload and its signature.

Verifying your webhook endpoint

Before the first real message, you can ask the platform to prove your endpoint is the one it thinks it is. The Test callback button on Console sends a signed request:

{
  "type": "verification",
  "challenge": "6326e43c9f0b4a1d8e77c0b511a2d3f4",
  "occurredAt": "2026-09-07T11:08:40Z"
}

To pass, return a 2xx with a JSON body echoing the exact challenge:

app.post('/agent-replies', (req, res) => {
  // ... verify the signature as above ...
  const event = JSON.parse(raw.toString('utf8'));

  if (event.type === 'verification') {
    return res.json({ challenge: event.challenge });
  }

  res.sendStatus(200);
  handleAsync(event);
});

The verification request is signed exactly like every other packet, so the function you already wrote works on it.
type only appears on verification requests, never on a real message.
Echoing challenge is mandatory. A bare 200 is not enough: a parked domain, a CDN error page and a load balancer all return 200.
Each verification uses a different challenge.
The platform does not follow redirects. A 301, 302 or 303 loses the request body, so it can never echo correctly.
Nothing is stored. A pass means your endpoint answered correctly at that moment.

Failure reason	What it means and what to do
`no_secret`	There is no secret yet, so the platform cannot sign. Generate a key first
`url_forbidden`	Not an absolute `https` URL, or it resolves to a non-public address
`unreachable`	Could not connect. Check the service is running and reachable from the internet
`http_status`	The endpoint returned a non-2xx code; the exact one is in the `httpStatus` field
`challenge_mismatch`	Returned 2xx but did not echo the `challenge`

The callback event structure

POST <callback_url>
Content-Type: application/json
User-Agent: fpt-agent-platform-channel-gateway/1
X-Hub-Timestamp: 1755763260
X-Hub-Signature-256: sha256=…

Field	Type	Description
`eventId`	string	The event id, stable across retries. Use it as the deduplication key
`integrationKey`	string	The channel routing key
`conversationId`	string	The conversation id. This is the value you pass to the history API. Store it
`runId`	string	The id of one answer turn. A new value each turn
`from`	`bot` or `operator`	Whether this turn came from the agent or from a human who took over
`user.id`	string	The customer id, exactly as you sent it
`text`	string	The text content. Always present, even alongside buttons or carousels
`buttons`	Array<Button>	Optional: a list of buttons
`quick_replies`	Array<QuickReply>	Optional: a list of quick replies
`carousels`	Array<Carousel>	Optional: a list of carousel cards
`references`	Array<Reference>	Optional: the sources the answer cited
`attachments`	Array<Attachment>	Optional. See the note at the end of this section
`occurredAt`	string	When it happened, RFC 3339 UTC

On naming: the outer fields are lowerCamelCase (eventId, integrationKey, conversationId, occurredAt), while the content blocks and the fields inside them are snake_case (quick_replies, sub_title, image_url, file_name). That is deliberate, not an oversight: the content blocks share a vocabulary with the chat widget and with conversation history.

Button

Field	Type	Description
`type`	`postback`, `url`, `phone_call`, `webview`	The button type
`title`	string	The button label
`data`	string	Optional: the hidden payload, when `type` is `postback`. Send this value back in `postback` when the customer taps it
`url`	string	Optional: the link, when `type` is `url` or `webview`
`phone`	string	Optional: the phone number, when `type` is `phone_call`

QuickReply

Field	Type	Description
`type`	`text` or `phone_call`	The quick reply type
`title`	string	The quick reply label
`data`	string	Optional: the hidden payload, when `type` is `text`
`phone`	string	Optional: the phone number, when `type` is `phone_call`

Carousel

Field	Type	Description
`title`	string	The carousel card title
`sub_title`	string	Optional: a subtitle
`image_url`	string	Optional: an image URL
`buttons`	Array<Button>	Optional: the card’s buttons

An image with buttons is sent as a carousel with a single item.

Reference

Field	Type	Description
`id`	string	The source’s identifier within this answer turn
`type`	`knowledge` or `web_search`	From the knowledge base or from a web search. An unknown value still renders as an ordinary card
`title`	string	Optional: the source title
`url`	string	Optional: the link, for web sources
`file_name`	string	Optional: the file name, for knowledge base sources
`uri`	string	Optional: the document identifier in the knowledge base
`page`	number	Optional: the page number in the document
`metadata`	object	Optional: data specific to each source type

Attachment

Field	Type	Description
`name`	string	The file name
`mime`	string	The file’s content type
`size`	number	The file size in bytes
`objectKey`	string	The storage object key. Not a download link. Exchange it for a short-lived link through the presign API

No platform feature currently attaches files to an API channel answer turn, so attachments has never appeared on a callback. The field is reserved for future compatibility. Inbound attachments work normally.

Example payloads

A text message with no buttons

{
  "eventId": "out:run-8891:0",
  "integrationKey": "api_7Kd2xQ9mPz4vR8nLcJt3Aw",
  "conversationId": "7412",
  "runId": "run-8891",
  "from": "bot",
  "user": { "id": "cust-42" },
  "text": "Your order will be delivered tomorrow.",
  "occurredAt": "2026-09-14T09:14:20Z"
}

A message with buttons

{
  "eventId": "out:run-8892:0",
  "integrationKey": "api_7Kd2xQ9mPz4vR8nLcJt3Aw",
  "conversationId": "7412",
  "runId": "run-8892",
  "from": "bot",
  "user": { "id": "cust-42" },
  "text": "What would you like to do next?",
  "buttons": [
    { "type": "postback",   "title": "Track order", "data": "track:SO-7781" },
    { "type": "phone_call", "title": "Call us",     "phone": "+84982123456" },
    { "type": "url",        "title": "Website",     "url": "https://example.com" }
  ],
  "occurredAt": "2026-09-14T09:15:02Z"
}

Quick replies

{
  "eventId": "out:run-8893:0",
  "integrationKey": "api_7Kd2xQ9mPz4vR8nLcJt3Aw",
  "conversationId": "7412",
  "runId": "run-8893",
  "from": "bot",
  "user": { "id": "cust-42" },
  "text": "How can I help?",
  "quick_replies": [
    { "type": "text",       "title": "Returns", "data": "intent:return" },
    { "type": "phone_call", "title": "Call us", "phone": "+84982123456" }
  ],
  "occurredAt": "2026-09-14T09:16:30Z"
}

A carousel

{
  "eventId": "out:run-8894:0",
  "integrationKey": "api_7Kd2xQ9mPz4vR8nLcJt3Aw",
  "conversationId": "7412",
  "runId": "run-8894",
  "from": "bot",
  "user": { "id": "cust-42" },
  "text": "Here are the products that suit you.",
  "carousels": [
    {
      "title": "Helmet A",
      "sub_title": "Meets QCVN 2:2008",
      "image_url": "https://example.com/img/helmet-a.jpg",
      "buttons": [
        { "type": "postback", "title": "Buy", "data": "buy:HELMET-A" },
        { "type": "url", "title": "Details", "url": "https://example.com/helmet-a" }
      ]
    },
    {
      "title": "Helmet B",
      "image_url": "https://example.com/img/helmet-b.jpg",
      "buttons": [
        { "type": "postback", "title": "Buy", "data": "buy:HELMET-B" }
      ]
    }
  ],
  "occurredAt": "2026-09-14T09:18:11Z"
}

An answer with source citations

{
  "eventId": "out:run-8895:0",
  "integrationKey": "api_7Kd2xQ9mPz4vR8nLcJt3Aw",
  "conversationId": "7412",
  "runId": "run-8895",
  "from": "bot",
  "user": { "id": "cust-42" },
  "text": "The returns policy applies for 30 days from delivery.",
  "references": [
    { "id": "r1", "type": "knowledge", "title": "Returns policy",
      "file_name": "policy-2026.pdf", "page": 4 },
    { "id": "r2", "type": "web_search", "title": "Warranty terms",
      "url": "https://example.com/warranty" }
  ],
  "occurredAt": "2026-09-14T09:20:45Z"
}

Handling callbacks

text is always present, even alongside buttons or carousels. It is the fallback rendering, so a text-only system still gets a coherent conversation.
Empty lists are absent, not []. buttons, quick_replies, carousels and references are omitted entirely when the turn has none.
conversationId and from may be absent on callbacks from older platform versions. Treat absence as undetermined.
Deduplicate on eventId, not runId.
Join your data on conversationId, not runId - a runId is only one answer turn.
Return 200 immediately and process asynchronously. Each call has only 10 seconds; slow processing counts as a failure and triggers a retry.

When your endpoint fails

Your response	What the platform does
2xx	Treated as delivered
5xx, 429, 408, timeout, connection error	Retries up to 3 times with backoff (around 1s, 3s, 9s). A `Retry-After` header you send is honoured, up to 30 seconds
Any other 4xx, or a redirect	No retry. Treated as permanently rejected
Still failing after 3 attempts	Moved to an error queue on the platform side, with an ERROR log line

When your endpoint is down for a long stretch, delivery is at most once. That is a deliberate trade-off: unlimited retries would clog the shared delivery component. The recovery path is the history API below; the error queue lives on the platform side and is not replayed to you automatically.

Callback URL requirements

https (http is only usable in internal development).
No credentials embedded in the URL. You authenticate the platform by signature, not by a secret hidden in a path.
It must resolve to a public internet address. Loopback, private, link-local, unique-local, multicast and carrier NAT ranges are all rejected.
The check runs at connection time, so a domain that resolves to an internal address is rejected too.
At most 2048 characters.

Reloading conversation history

This is the recovery path for answer turns you never received. Because callbacks are at-most-once, after 3 failures the turn stays in the error queue; without this API that message would be lost to you.

GET https://console-agents.fpt.ai/direct-bff/v1/conversations/7412/messages?after=9001&limit=30
Authorization: Bearer <API key>

Parameter	Description	Required
`conversationId`	From the field of the same name on the callback. A positive integer	Required
`after`	The pagination cursor: the id of the last message you have. Omit it to read from the start of the conversation	Optional
`limit`	Messages per page. Default 30, maximum 100. Values outside the range are clamped, not rejected	Optional

A 200 response:

{
  "conversationId": "7412",
  "messages": [
    { "id": "9001", "role": "user", "from": "customer",
      "text": "Where is my order?", "createdAt": "2026-09-14T10:30:00Z",
      "attachments": [
        { "name": "invoice.pdf", "type": "application/pdf", "size": 1024 }
      ] },
    { "id": "9002", "role": "assistant", "from": "bot",
      "text": "Let me check that for you.", "createdAt": "2026-09-14T10:30:04Z",
      "buttons": [
        { "type": "postback", "title": "Track order", "data": "track:SO-7781" }
      ] },
    { "id": "9003", "role": "assistant", "from": "operator",
      "text": "Your order has been processed.", "createdAt": "2026-09-14T10:41:00Z" }
  ],
  "limit": 30,
  "hasMore": false
}

Use the organisation API key, not the channel secret. The secret proves your server is forwarding a message; this is you reading your own data. A visitorToken can read its own session only; reading another returns 403 SESSION_FORBIDDEN.
Cursor pagination, oldest first. Pass after as the id of the last message you hold; hasMore says whether there is another page.
Message ids are strings, because they exceed JavaScript’s safe integer range, but they still sort numerically.
Read from, not role. A human operator’s turn is stored with the same role as the agent’s. Here from has three values: customer, bot, operator.
operator does not occur yet: the platform has no feature for staff to answer in place of the agent on this channel. The field is reserved for future compatibility.
Every row returned is a real turn. A row only appears when it has text, buttons, quick replies, a carousel, citations or an attachment, so you do not have to filter out empty bubbles.
A malformed after returns 400 rather than being silently ignored.
One 404 covers three cases: the conversation does not exist, it belongs to another organisation, or it is an internal staff conversation. Deliberately indistinguishable.
Attachments carry only name, type and size, with no object key.
Reading history does not consume the run quota. It has its own, 120 calls per minute per API key by default.
When you exceed the history quota, the 429 comes with only a Retry-After header.

This is a recovery path, not an archive. When a customer is deleted under the data retention policy, all their messages go with them. Sync whatever you need to keep into your own systems.

API keys and usage quotas

Creating an API key

The organisation API key is used for the history API and the file download link API. Create one on the API keys page in Console.

Keys look like sk- followed by 32 random characters, for example sk-9Kd2xQ….
A key is shown exactly once, at creation. The system only stores a hash, so there is no way to see it again.
The key list shows the first 12 characters so you can tell them apart.
A key acts with the rights of whoever created it, so it grants nothing new.

Revoking and rotating keys

Revocation is a flag, not a deletion: a revoked key id is still resolvable afterwards so the audit trail stays readable. The list shows revoked keys too.

Revocation takes up to 30 seconds to bite, because keys are cached. The response carries a revocationDelaySeconds field stating exactly that. If a key leaks, revoke it at once and allow for the delay.

Rotating an API key is two steps in this order: create the new key first, revoke the old one second. In between, both work.

Checking your usage

GET https://console-agents.fpt.ai/direct-bff/v1/usage
Authorization: Bearer <API key>

{
  "day": "2026-09-14",
  "runs": { "used": 42, "limit": 2000, "remaining": 1958,
            "resetsAt": "2026-09-15T00:00:00Z" },
  "rate": { "limit": 20, "window": "1m" }
}

runs is the organisation’s daily UTC budget, shared across every conversation and every channel. It refills at resetsAt, which is 00:00 UTC.
rate.limit is the per-minute limit for each caller.
Checking usage does not consume quota, so you can call it often.
API keys only. A visitorToken is rejected with 403 USAGE_FORBIDDEN.

APIs that count against quota also carry three headers, on successful responses as well as on a 429:

X-RateLimit-Limit:     2000
X-RateLimit-Remaining: 1957
X-RateLimit-Reset:     1757894400

Next steps

Live Chat channel

Use the platform’s ready-made chat window instead of building your own.

Mobile SDK

Bring the chat window into Android and iOS apps.

Technical appendix

Error codes, system limits and the pre-production checklist.

​Choosing an integration channel

​Environments and domains

​Connecting the API channel and getting your keys

​What you get

​Testing the callback URL

​Rotating the secret

​Verifying event payloads

​Signing in Go

​Signing in Node.js

​Verifying signatures the platform sends you

​Receiving customer messages

​A text message

​A message from a button or quick reply

​A message with an attachment

​Parameters

​A cURL example

​Response codes

​Deduplication

​Inbound attachments

​Additional data

​Agent message callbacks

​Verifying your webhook endpoint

​The callback event structure

​Button

​QuickReply

​Carousel

​Reference

​Attachment

​Example payloads

​Handling callbacks

​When your endpoint fails

​Callback URL requirements

​Reloading conversation history

​API keys and usage quotas

​Creating an API key

​Revoking and rotating keys

​Checking your usage

​Next steps

Live Chat channel

Mobile SDK

Technical appendix

Choosing an integration channel

Environments and domains

Connecting the API channel and getting your keys

What you get

Testing the callback URL

Rotating the secret

Verifying event payloads

Signing in Go

Signing in Node.js

Verifying signatures the platform sends you

Receiving customer messages

A text message

A message from a button or quick reply

A message with an attachment

Parameters

A cURL example

Response codes

Deduplication

Inbound attachments

Additional data

Agent message callbacks

Verifying your webhook endpoint

The callback event structure

Button

QuickReply

Carousel

Reference

Attachment

Example payloads

Handling callbacks

When your endpoint fails

Callback URL requirements

Reloading conversation history

API keys and usage quotas

Creating an API key

Revoking and rotating keys

Checking your usage

Next steps
